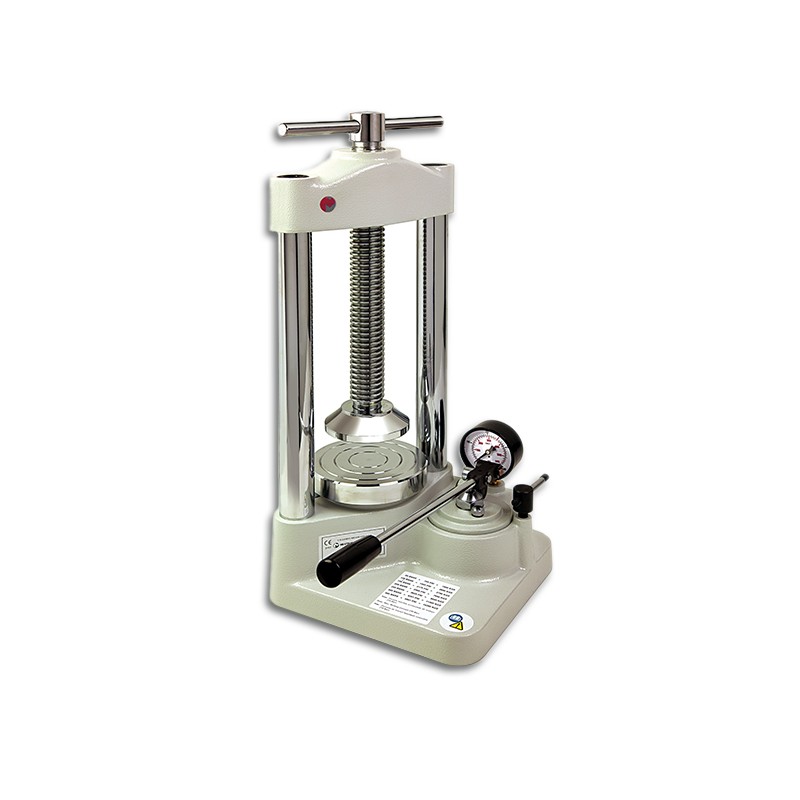

Hydraulic Press MESTRA

The MESTRA hydraulic press is sturdy, elegantly designed, and easy to handle. It is built following the latest standards and made from innovative materials.

The hydraulic system is engineered to prevent any oil leakage from the chamber.
Wear-prone components are made of hardened and ground steel.
Finished with epoxy paint.

The press is fitted with springs that automatically return the lower plate to its initial position after use.

The space between columns and the diameter of the upper plate allow easy insertion and removal of flasks with the MESTRA R-030380 press clamp, without having to adjust the spindle—saving time and increasing convenience.

Technical specifications:

Height (spindle down): 510 mm

Width: 225 mm

Depth (without lever): 230 mm

Upper plate diameter: 125 mm

Working space:

Height: 235 mm

Width: 140 mm

Weight: 20 kg

Maximum piston stroke: 25 mm

Maximum admitted pressure: 15,200 kg (400 kg/cm²)

Recommended max pressure: 9,500 kg (250 kg/cm²)
