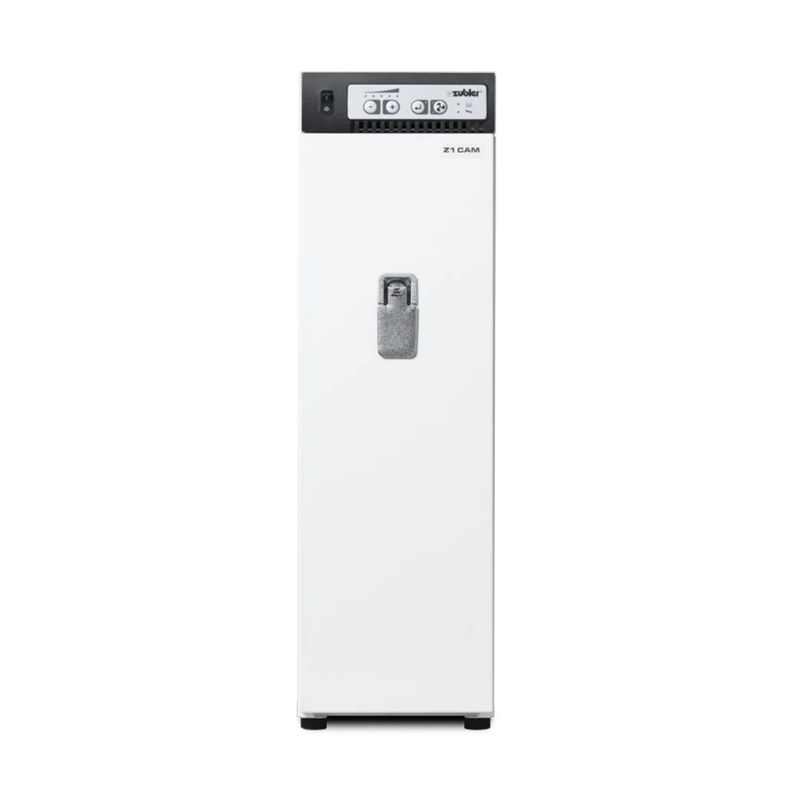

Suction unit ZUBLER Z1-CAM PRO EC

eatures and properties

Technical Data:

Width: 200 mm

Height: 675 mm

Depth: 590 mm

Weight: 31 kg

Suction Power: 700 W

Throughput: 15-65 l/s

Noise Level: 41-60 dB(A)

Exhaust Air Connection Options:
The model includes a diffuser limiting exhaust airflow to max. 1 m/s. Optional H14 or activated carbon filters, or external exhaust adapter available.

Regulated Step Switch:
Five suction levels, with the first four customizable. Smart control adapts suction to the filter's filling level. Fifth level provides temporary maximum power.

Motor Technology:
Brushless, electronically controlled motor. Maintenance-free for over 5000 hours. Ideal for continuous operation. Low noise due to effective insulation.

IFA Certification – DGUV:
Conforms to DIN EN 60335-2-69 Appendix AA and GS-IFA-M020 requirements for dental labs.

Zubler Extraction Technology App:
Bluetooth connectivity for system insights, personalized settings, and remote maintenance.

External Control Panel:
Optional control module installable at eye level for comfortable use and instant status view.
